Oil Cooler Hose
Oil Cooler Hose
Oil cooler hose is to transfer the cooler which prevent the lubricant or other oils from being overheating. Orientflex offers you various engine cooler hose options to meet your requirements. Our oil coolant hose is made from the top grade raw material with SAE J1532 standard. We promise you that there will never be leakage problem and our engine oil cooler lines have long serive life. Contact us now and get the best transmission cooler hose.
Oil Cooler Hose SAE J1532
Tube: Black, oil resistant, synthetic rubber
Reinforcement: Braided, high tensile steel wire. 1/4″, 5/16″, 3/8″ and 1/2″ are one layer of braid; 5/8″, 3/4″, and 1″ are two layers of braid
Cover: Nylon yarn or steel wire braid
Temperature: -40℃ to +150℃ (-40℉ to +302℉)
Engine Oil Cooler Hose circulates oil between the oil cooler and engine. This helps keep the engine from overheating. If the oil cooler tube fails, there will be oil leaking from the hose and a low oil warning.

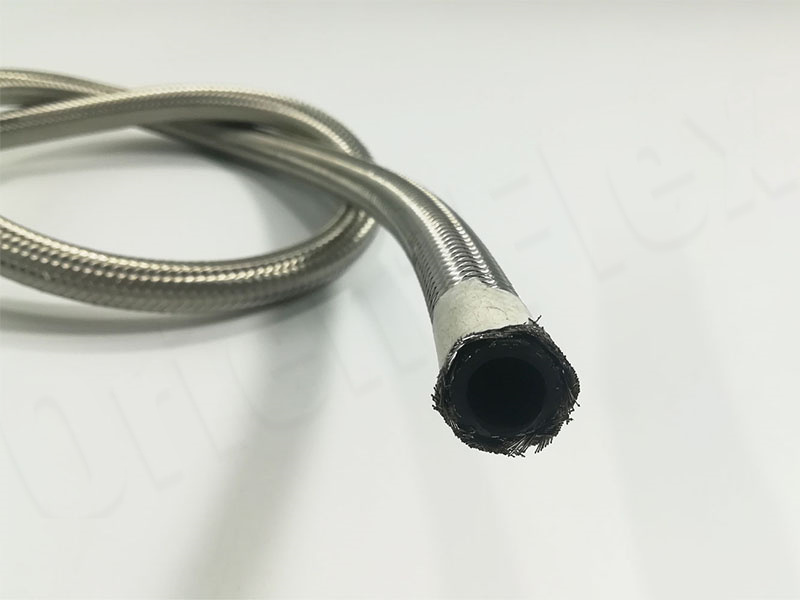

Rubber transmission cooler lines consist of a inner synthetic rubber tube, SS304 soft steel wire reinforcement and a nylon yarn or steel wire braid cover. There is a SS braid outside, making oil coolant line light in weight, flexible and durable.
Oil Cooler Hose Features
- High and low temperature resistant
- Superior heat dissipation
- Corrosion, oil and aging resistant
Oil Cooler Hose Application
Used for automatic transmission fluid, lubricant and other oils
Oil Cooler Hose Specification
| Item Code | ID | OD | WP | BP |
| mm | mm | psi | psi | |
| An04 | 5.56 | 11.13 | 1500 | 6000 |
| An06 | 8.73 | 13.89 | 1500 | 6000 |
| An08 | 11.12 | 16.28 | 1500 | 6000 |
| An10 | 14.27 | 20.24 | 1250 | 5000 |
| An12 | 17.47 | 1000 | 1000 | 4000 |
| An16 | 22.22 | 750 | 750 | 3000 |
| An20 | 28.03 | 300 | 300 | 1200 |
